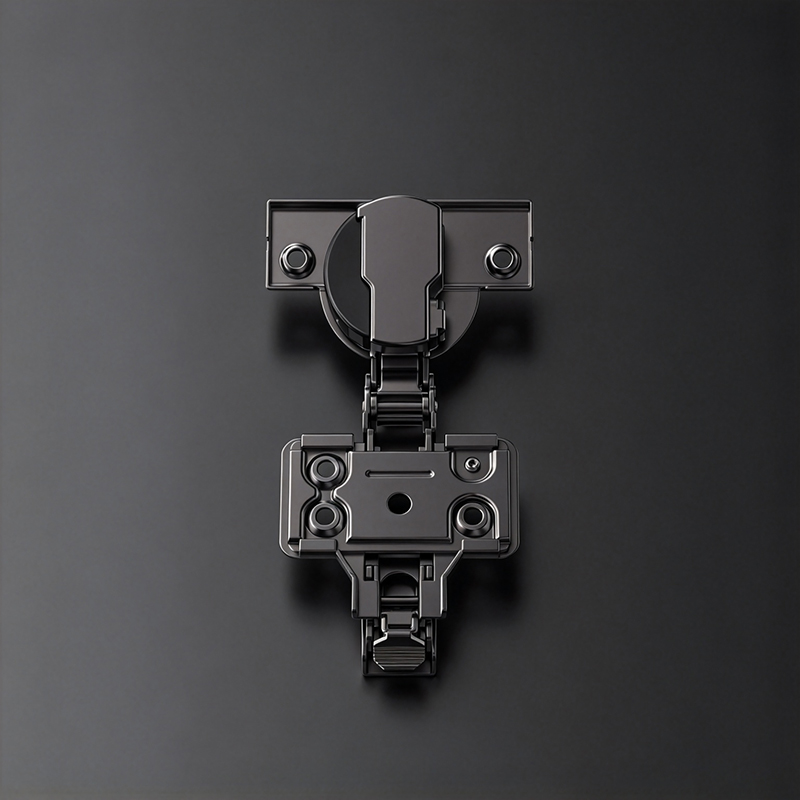

Damping built into the cup. Two-stage closing, quiet every time: the hinge brakes from 40°, slows again at 15°, and switches between damped and direct by a single lever.
|
Item |
Specification |
|
Product Name |
Two-Way Soft-Close Hinge |
|
Model No. |
/ |
|
Material |
Cold-Rolled Steel |
|
Finish |
Titanium Finish |
|
Door Type |
Wooden Door |
|
Installation |
Fixed / Screw-On |
|
Opening Angle |
105° ± 3° |
|
Door Thickness |
15 – 27 mm |
|
Cup Thickness |
12 mm |
|
Cup Diameter |
35 mm |

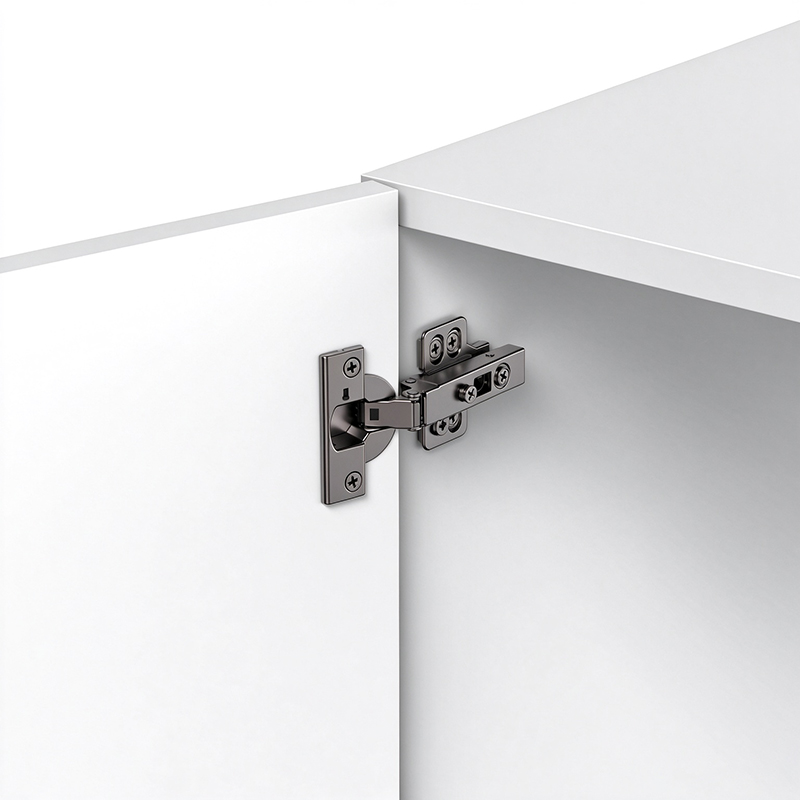

Door gaps are corrected in three directions—up/down, left/right and front/back—with a single screwdriver, so doors still sit flush when the cabinet carcass is slightly out of square.
The hinge opens lightly through the first stage and then holds in the second, so the door stays where you leave it instead of swinging back on its own.
The cup clips onto the mounting plate and locks with a firm click—no screws at the door-to-arm joint, and no bounce-back after fitting, so a door goes on in seconds.
A lever on the hinge switches the damper on or off, letting one hinge match different preferences—soft and quiet in living areas, more direct elsewhere.
Thin 12 mm cup and a 15–27 mm door thickness range mean one SKU covers wardrobe, kitchen and bathroom cabinets alike 12mm
Cushioning starts at 40° and drops to a slower second stage at 15°, so the door meets the cabinet softly instead of slamming—quieter in the home, and safer for fingers.
